4800lm LED Retail Lighting

Name: 4800lm LED Retail Lighting
Brand: CoreShine
Price: 1 USD

Brand Name : CoreShine

Model Number : CFL-1550-X1X2-X3WH

Certification : UL, LVD, CE, ENEC, TUV, SAA, C-TICK, CB, GS, VDE, ETL

Place of Origin : Guangdong, China

MOQ : 1 piece

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 25000-30000 pcs/month

Delivery Time : 5-8 working days

Packaging Details : one set in one box (1678*170*92mm)

Item : 50w Led Linear Shop Lighting System

Length : 1500mm

Power : 50W

CRI (Ra>) : 80

PF : >0.95

THD : <15%

Lumen : 4800lm-19200lm

Dimming : DALI, 1-10V, DIMswitch

Contact Now

4800lm LED Retail Lighting

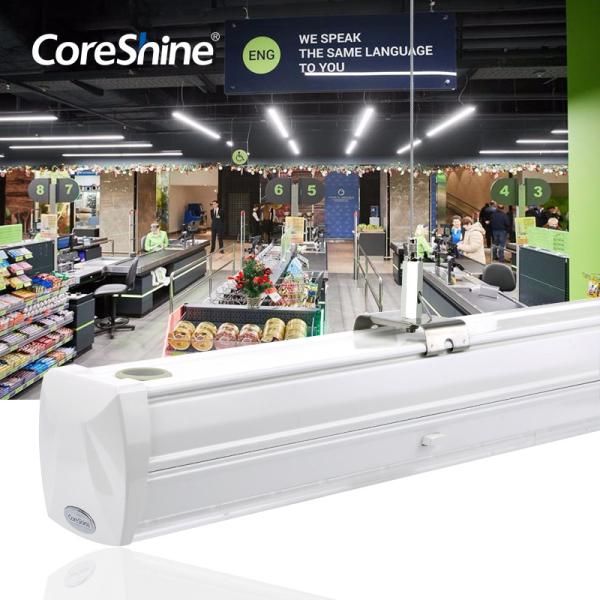

Surface Mounted Led Linear Lighting System in Stores 1500mm 50w

LED linear light is exclusively designed for designers and architects with imagination and personal style.LED linear light adopt premium aluminum profile, different dimension, and size, easy to install.3 types of installations method: ceiling mounted type, suspended type, and embedded type, and different customized dimensions are also acceptable, which can meet install location requirements of different fields and occasions.

FEATURES

LED linear light is exclusively designed for designers and architects with imagination and personal style.
LED linear light adopt premium aluminum profile, different dimension, and size, easy to install.
3 types of installation methods: ceiling mounted type, suspended type, and the embedded type and different customized dimensions are also acceptable, which can meet installation requirements of different fields and occasions.

DETAILS

Item:	Led Linear Light Trunking System
Style:	S-Line	Material:	Aluminum Alloy + PMMA lens / PC cover
Length:	1200mm, 1500mm, 2400mm, 3000mm	Light Source:	Smd2835 (Everlight/Samsung)
Trunking:	600mm, 1200mm, 1500mm, 2400mm, 3000mm	Input Voltage:	AC220-240VAC/100-277VAC
UGR:	<19	CRI (Ra>):	80/95
Beam Angle:	25°;60°;90°;120°; Asymmetric; Double Asymmetric	CCT:	3000K/4000K/5000K/6000K
PF:	>0.95	THD:	<15%
Lumen:	4800lm-19800lm	Dimming:	DALI, 1-10V, DIMswitch
Driver:	Coreshine/Rubycon	Color:	White, Black, Silver
IP Rating:	IP20	Light Color:	Warm White, White, Cold White
Efficiency:	160lm/w	Power:	35W,50W,65W,70W,100W,150W...
Warranty:	5 years	Lifespan:	50000 hours
Installation	Chain, Cord, Rod, Surface Mounted	Connector	L/T/X Node Connector can be choose
Function	Dimmable (DALI/1-10V), Emergency, Sensor, Track Spot Light
Switch Type:	Motion Sensor Switch	Shipping:	DHL/UPS/FEDEX/TNT...
Applications:	Supermarket, Warehouse, Office, Stores, Shops, Commercial and Industrial Projects...

APPLICATIONS

Suitable for Supermarket, Warehouse, Workshop, Office, Car Parking, Schools, Classroom, Colleges, Retail Stores, Factories, Commercial Purposes, Industrial Projects, Institution Buildings, Universities, Hospitals, and other Architectural places that need energy saving and high color rendering index lighting.

Returns of Investment COMPARISON

We did a comparison test between Coreshine S-line and LED tube in the 300m² of warehouse

300 sq.m
	Unite	S-Line	LED Tube
Lighting Effect	lm/w	160	100
Qty of Luminaire	set	600	960
Total Power Consumption	KW	30	48
Unite Price of Electric	CNY/KWH	1.5
Light Time	Hour/Day	1.2
Electric bill/day	CNY	540.00	864.00
Electric bill/month	CNY	16,200.00	25,920.00
Electric bill/year	CNY	194,400.00	311,040.00
Save the cost per year	CNY	116,640.00

FAQ

Q1. Can I have a sample order for the led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: Sample needs 5-10 days, mass production time needs 3-4 weeks for order quantity more than 1000pcs
Q3. Do you have any MOQ limit for the led light order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx, or TNT. It usually takes 5-7 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed with an order for led light?
A: Firstly let us know your requirements or application.
Secondly, We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places a deposit for formal order.
Fourthly We arrange the production.
Q6: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.3%.
Secondly, during the guarantee period, we will send new lights with a new order for small quantities. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to the real situation.
